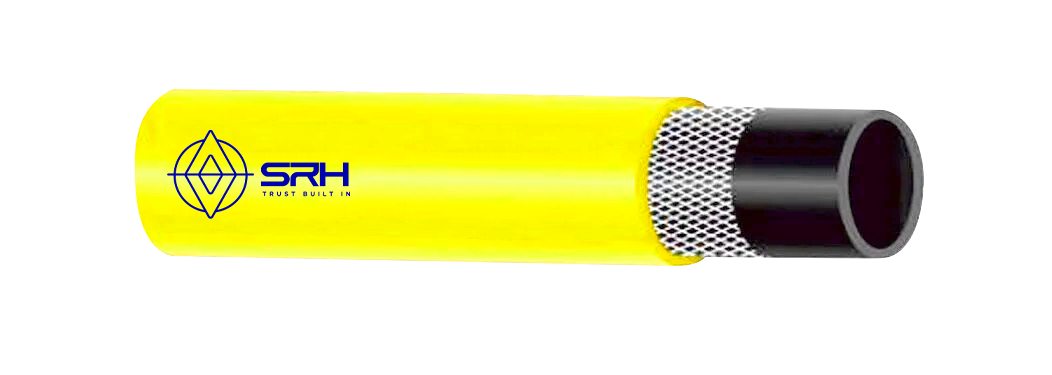

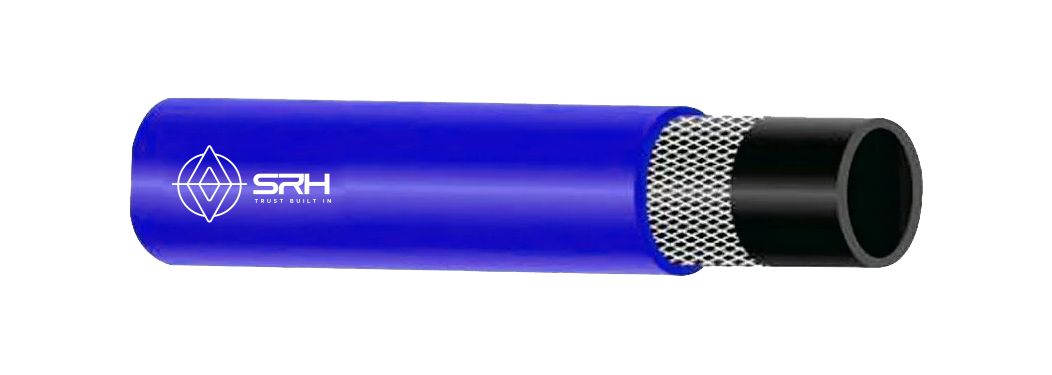

Sirocco 20
Air Compressor Hose
Characteristics
Description: A sturdy air compressor hose with improved weather and ozone resistance.
Applications: Air compressor hose (Jackhammer hose) used primarily in construction sites.
Temperature Range: -30°C to +80°C (-22°F to +180°F)
WARNING: Not recommended for steam or fuel. Do not use in environments where oil is present.
Construction
Tube: EPDM synthetic rubber. ARPM Class C (limited oil resistance).
Reinforcement: Spiral polyester yarn.
Cover: Smooth black* synthetic EPDM, weather and ozone resistant rubber. ARPM Class C (limited oil resistance).
Packaging: Hose supplied in bulk coils or on plastic reels.
Optional: Private branding, different cover colours, pre-made assemblies.
Technical Specifications
|
ID (mm) |
OD (mm) |
WP (bar) |
BP (bar) |
BEND RADIUS (mm) |
WEIGHT (kg/ mt) |
|---|---|---|---|---|---|
|
6 |
14 |
20 |
60 |
40 |
0.20 |
|
8 |
17 |
20 |
60 |
55 |
0.26 |
|
10 |
19 |
20 |
60 |
70 |
0.29 |
|
13 |
23 |
20 |
60 |
90 |
0.41 |
|
16 |
26 |
20 |
60 |
110 |
0.48 |
|
19 |
30 |
20 |
60 |
135 |
0.58 |
|
25 |
37 |
20 |
60 |
175 |
0.88 |
|
ID (Inch) |
OD (Inch) |
WP (PSI) |
BP (PSI) |
BEND RADIUS (Inch) |
WEIGHT (lbs/ ft) |
|---|---|---|---|---|---|
|
1/4″ |
0.55 |
300 |
900 |
1.57 |
0.13 |
|
5/16″ |
0.67 |
300 |
900 |
2.17 |
0.17 |
|
3/8″ |
0.75 |
300 |
900 |
2.76 |
0.19 |
|
1/2″ |
0.91 |
300 |
900 |
3.54 |
0.28 |
|
5/8″ |
1.02 |
300 |
900 |
4.33 |
0.32 |
|
3/4″ |
1.14 |
300 |
900 |
5.31 |
0.39 |
|
1″ |
1.46 |
300 |
900 |
6.89 |
0.59 |
N.B. Dimensions meet ISO 1307 tolerances. ID, OD, WP & BP sizes can be customized.
